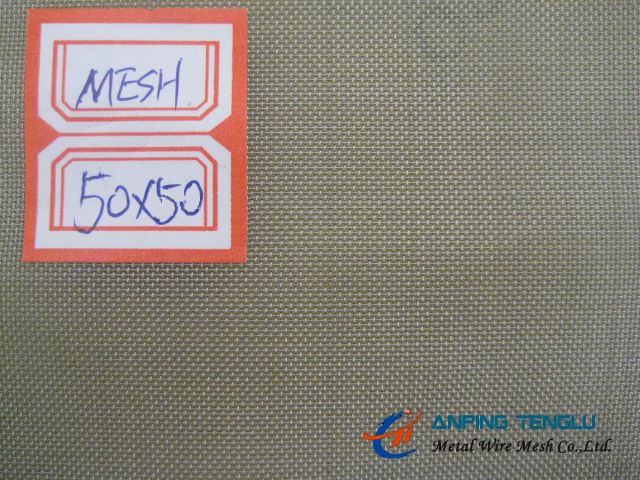

50mesh AISI304/316 Woven Mesh With 36"×100ft and 48"×100ft Roll Size

  • 1
  • 2
  • 3

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 10rolls

Price : usd

Payment Terms : T/T, L/C at sight

Delivery Time : In 20days

Packaging Details : Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof

Material : AISI304/316

Mesh Count : 50mesh/Inch

Wire Dia. : 0.12mm-0.25mm

Weave Type : Plain Weave

Width : 1.0m, 1.2m, 1.3m, 1.5m, 2.0m; 36", 48"

Length : 30m; 100ft

Certification : ISO9001:2015

Contact Now

50mesh AISI304/316 Woven Mesh With 36"×100ft and 48"×100ft Roll Size

Stainless Steel Woven Wire Mesh

Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade's unique properties. The wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

50 mesh plain weave stainless steel wire mesh including 50 wires and openings of 1 inch. Using 0.12-0.25mm diameter wire, by plain weaving, woven 50 mesh opening for 0.2-0.3mm solid particles , it can also be used as a liquid or gas fine filter material . This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Materials: SS201, SS202; SS301, SS302, SS304, SS304L, SS309, SS309S, SS310, SS310S, SS316, SS316L, SS321; SS410, SS420, SS430.

Weaving Type: Plain weave.
50mesh AISI304/316 Woven Mesh With 36"×100ft and 48"×100ft Roll Size

Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.
Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.
Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Applications:
This kind of stainless steel wire mesh are widely used in acid, alkali screening and filtration under environmental conditions, the oil industry for the mud net, chemical fiber chemical industry for sieving, environmental protection, minerals, aviation, paper industry, electronics, metallurgy, electroplating industry for pickling and so on. Mainly used as air vents, filters, strainers, shielding, plastic extrusion particles mesh, chemical filler, etc.


Specifications:

Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
0.23 0.0090 0.278 0.0109 29.94 1.32 2.90
0.21 0.0082 0.298 0.0117 34.41 1.10 2.42
0.19 0.0074 0.318 0.0125 39.18 0.90 1.98
0.18 0.0070 0.328 0.0129 41.68 0.81 1.78
0.17 0.0066 0.338 0.0133 44.26 0.72 1.58
0.15 0.0059 0.358 0.0140 49.66 0.56 1.23
0.13 0.0051 0.378 0.0148 55.36 0.42 0.92
0.12 0.0047 0.388 0.0152 58.33 0.36 0.79
Roll Width: Max 8.0m

Standard Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8

Other specifications according to your requirements.
